KD-CATHD500

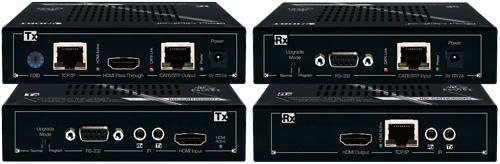

HDBT via Single CAT6/STP (TX/RX) Extenders with EDID Control, HDMI Pass-through, RS-232, IR and Ethernet, support up to 400ft on 1080p/60, support up to 600ft on 1080i/60 when used with KD-CAT6STP1X cable



click to zoom
1 Key Logo

Bulletproof HDMI® solutions from Key Digital®.
Once a legal (HDCP) source(s) and legal (HDCP) displays are connected to Key Digital’s HDMI product(s) and a key has been established, Key Digital will authenticate all the topology of the connected products without a problem between the source and the display.
HDMI® Features:
  • 3D - Capability to pass broadcast (1080i/720p) 3D stereoscopic signal formats
  • 4K - 4096x2160/24 video resolution support for commercial applications such as Digital Movie Theaters, CAD, Post Production, Graphics and etc
Key Features:
  • KD-CATHD500 with KD-CAT6STP1X extends 1080p/60, 1920x1200, 3D, and 4K signals up to 400ft and up to 600ft on 1080i/60
  • Auto-adjustment of feedback, equalization and amplification depending on the length of cabling used
  • Internal EDID Library features 10 default EDID configurations including native EDID data from any Output/Display
  • Features both Transmit and Receive IR, RS-232 and Ethernet for bi-directional control signals
  • Full support for 12-Bit Deep Color Video
  • Supports lossless compressed digital audio:
    • Dolby® TrueHD, Dolby® Digital Plus and DTS™-HD Master Audio
  • Support CEC to the main input and output HDMI channel. Does not support CEC for the pass-through HDMI output
Key Benefits:
  • HDMI, IR, RS-232 and Ethernet signals combined over a single CAT6/STP
  • HDMI pass-through port on Tx Extender connects additional devices up to 20 ft.
  • Daisy chaining of Tx and Rx units allow almost unlimited extending of HDMI, RS-232, IR and Ethernet signals
  • Support for HD Base T® Technology
HDMI® and HDCP Licensing:

Downloads:
  • Catalog Page
  • Application Example
  • Operation Manual
  • Specifications
  • Key Digital HDMI baluns performance as used with various CAT5e/6 cables (PDF)
Product Videos:

Key Digital at InfoComm 2012: KD-HD8X8BT and KD-CATHD500
  • Join Key Digital's Jonathon Ferry as he explains the features and capabilities of our HDMI matrix switcher - the Digital IQ Series model, KD-HD8X8BT. KD-HD8X8BT is the first Key Digital HDMI matrix switch to utilize HDBaseT. Jonathon will also cover the FatCat Series KD-CATHD500Rx Receive Balun with HDBaseT capability
Key Digital Analog & Digital Baluns/Extenders at CEDIA 2011
  • Join Technical Group Manager Jonathon Ferry as he shows some of Key Digital's analog and digital baluns/extenders. Jonathon will also explain some of the features and benefits of several balun/extender models
KD-CATHD500 at CEDIA 2011
  • Join Key Digital's Dan O'Donnell as he guides you through a live demonstration of our new FatCat Series model KD-CATHD500 Balun Kit
Compatible with:
General Info:
  • Regulation: CE, RoHS, WEEE
  • Power: UL Certified Power Supply – 5V / 2A, 110-240 VAC, 50-60 Hz
  • Power Consumption: Tx - 2.5 Watts, Rx - 5 Watts
  • Accessories: Mounting Bracket, Locking HDMI Cable Clip
  • Product Dimensions (Each): L = 6” W = 4.1” H = 1.2”
  • Shipping Carton Dimensions: L = 15.4” W = 8.7” H = 3.6”
  • Product Weight (Each): 1 lb
  • Shipping Weight: 3 lbs
  • Enclosure: Black Metal

* Key Digital® HDMI® product specifications are given using only Key Digital HDMI cables. Using any other cables can alter or prevent your Key Digital HDMI product from meeting the given features and benefits of our advanced line of HDMI products. HDMI Products using CAT5/6/7 cabling should be properly terminated and of high grade in order to maintain the best performance possible.

Important: Due to differences between Category (CAT5/5e/6) cables, quality of power and ground wiring at the installation and to ensure the maximum performance for HDMI signals, the use of CAT6 STP cable must be used for all configurations where the following products are installed: KD-HDMSW4X4, KD-HDMS4x4, KD-BBTX and KD-BBRX. The CAT6 cable has to be terminated according to TIA/EIA-568-B standard. The shield of CAT6 must be soldered on both ends to the shield of RJ45 connector used. Key Digital cannot guarantee the performance of switchers and baluns, if cables other than that specified are used.
